Products >> Gear Parts >>

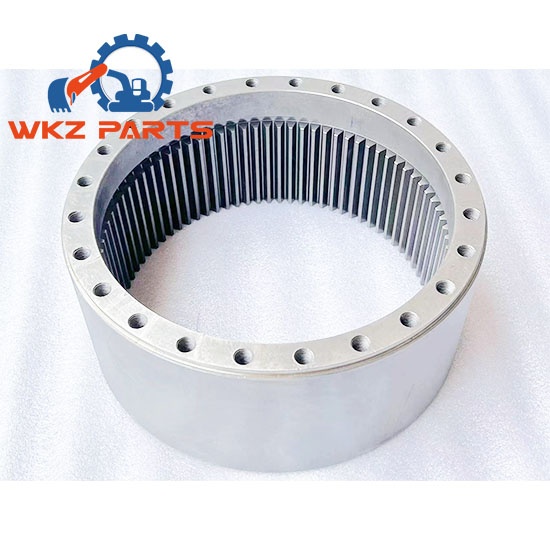

R215LC-7 Gear Ring 39Q6-42110 39Q642110 R210LC-7A R210LC-9

Product No.：39Q6-42110
Model No.：R210LC-9 R220LC-9 R215LC-7
Delivery Time：1-2 working days
Payment Terms：T/T, PayPal, Western Union
Packing Details：Carton Box
Online Inquiry

R215LC-7 Gear Ring 39Q6-42110 39Q642110 R210LC-7A R210LC-9

R215LC-7 Gear Ring Information Reference:

PART NAME	R215LC-7 Gear Ring 39Q6-42110 39Q642110 R210LC-7A R210LC-9
WARRANTY	3 Months
Material	Iron
MODEL NUMBER	R210LC-9, R215LC-7, R220LC-9
H/S CODE	8409999990
STOCK	YES
CONDITION	New
PLACE OF ORIGIN	GUANGZHOU
PACKING	Wooden box,standar packing with safety
PARTS NUMBER	39Q6-42110, 39Q642110
PAYMENT	T/T, WESTERN UNION IN ADVANCE,PAYPAL
MOQ	1 PCS/SET
R215LC-7 gear ring, hyundai gear ring, R220LC-9 ring gear

Shipping Ways :

1. For small urgent order shipping via DHL, TNT, UPS, FEDEX, EMS etc.

2. By air delivery (big wooden boxes, weight over 60kg).
3. FOB price term by sea transportation ;

4.Delivery to customers agent warehouse in China.

Why Choose us :

1. we can control the quality

2. we can give you a better price
3. we can produce the products in accordance to the customer's requirements.
4. We can manufacture the products in accordance to the sample provided by our customers
5. we have more than 5 years' experience
6. the accumulation of long time, we have a wide range of spare parts of excavator.

Packing:
Standard export package, carton box.
All our products are well packed to keep products away from damage or moisture.

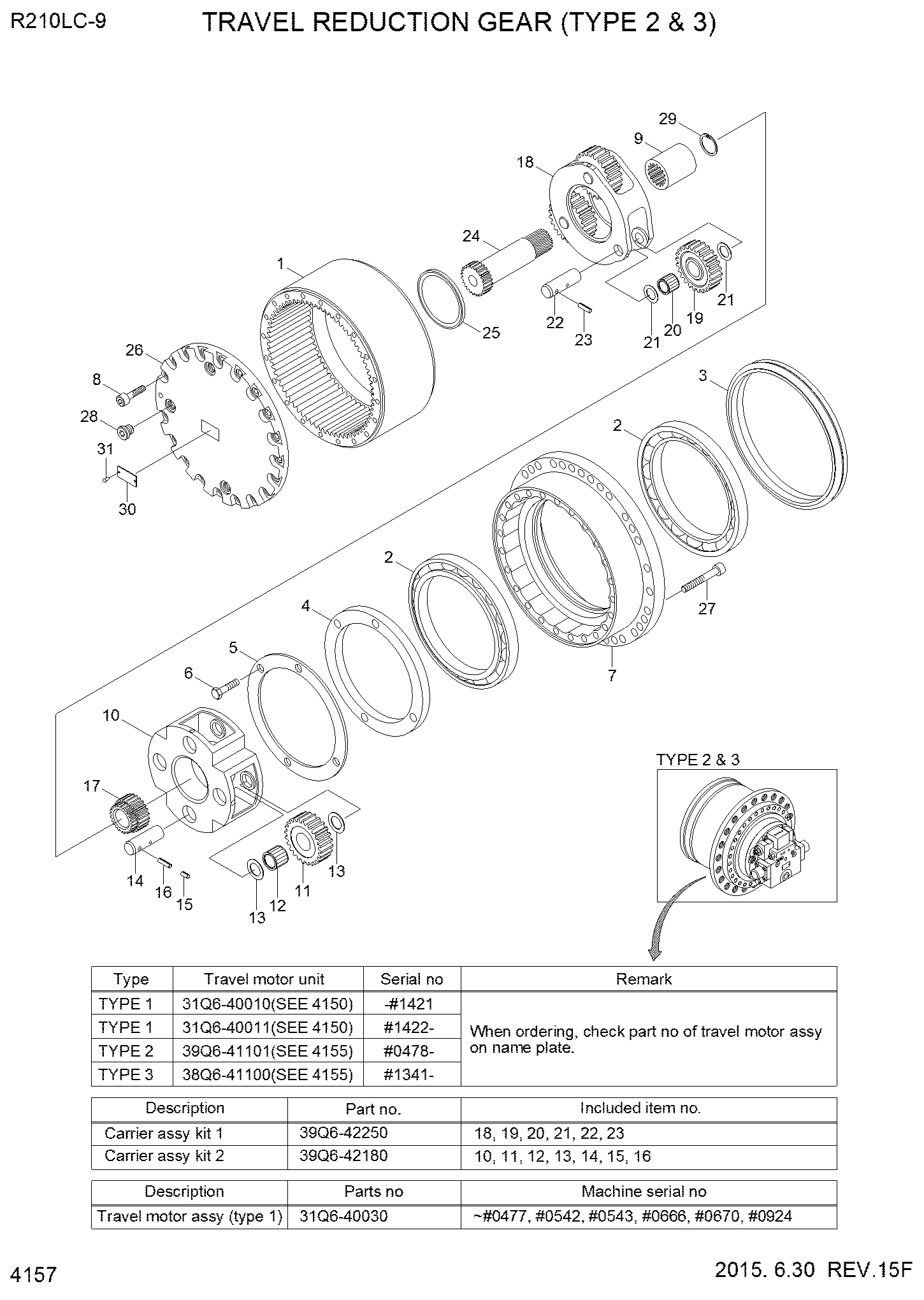

Parts on group TRAVEL REDUCTION GEAR (TYPE 2 & 3):

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4155
*-2.	39Q6-42100	[1]	TRAVEL REDUCTION GEAR
*-2.	39Q6-42101	[1]	TRAVEL REDUCTION GEAR
1	39Q6-42110	[1]	GEAR-RING
2	39Q6-42120	[2]	BEARING-ANG.BALL
3	39Q6-42130	[2]	SEAL ASSY-FLOATING
4	39Q6-42140	[1]	RING-NUT
5	39Q6-42150	[1]	PLATE-LOCK
6	S017-120166	[4]	BOLT-HEX
7	39Q6-42160	[1]	HOUSING
8	S129-070206	[20]	BOLT-SOCKET,UNIFIED
9	39Q6-42170	[1]	COUPLING
K10	39Q6-42190	[1]	CARRIER 2
K11	39Q6-42200	[4]	GEAR-PLANATARY 2
K12	39Q6-42210	[4]	BEARING-NEEDLE 2
K13	39Q6-42220	[8]	WASHER-THRUST 2
K14	39Q6-42230	[4]	PIN-CARRIER 2
K15	S472-800164	[4]	PIN-SPRING
K16	39Q6-42350	[4]	PIN-SOLID 2
17	39Q6-42240	[1]	GEAR-SUN 2
K18	39Q6-42260	[1]	CARRIER 1
K19	39Q6-42270	[3]	GEAR-PLANETARY 1
K20	39Q6-42280	[3]	BEARING-NEEDLE 1
K21	39Q6-42290	[6]	WASHER-THRUST 1
K22	39Q6-42300	[3]	PIN-CARRIER 1
K23	S472-600364	[3]	PIN-SPRING
24	39Q6-42310	[1]	GEAR-SUN 1
25	39Q6-42320	[1]	PLATE-THRUST
26	39Q6-42330	[1]	COVER
27	S109-16110D	[24]	BOLT-SOCKET
28	P220-110205	[3]	PLUG-HEX
29	S602-035001	[1]	RING-RETAINING
30	39Q6-42342	[1]	NAME PLATE
30	39Q6-42342	[1]	NAME PLATE
30	39Q6-42342	[1]	NAME PLATE
31	39Q6-41800	[2]	RIVET
32	S631-024001	[3]	O-RING
K	39Q6-42250	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K	39Q6-42180	[1]	CARRIER ASSY KIT 2	SEE ILLUST
*-1.	@	[1]	TRAVEL MOTOR UNIT	SEE 4155
K	39Q6-42250	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K	39Q6-42180	[1]	CARRIER ASSY KIT 2	SEE ILLUST

R215LC-7 Gear Ring Product Pictures:

https://www.wkzparts.com/e_products/Gear-Parts-10.html

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB

Q4. How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you cannot find the parts you need in our website, please feel free to contact us for more details!
